3200W - 48V Off Grid Solar Kit - Power Inverter

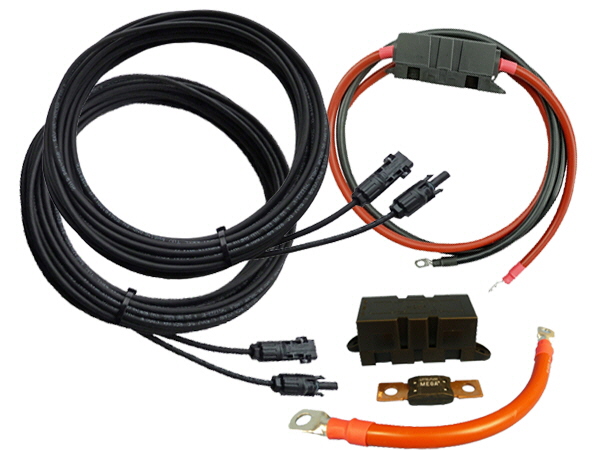

The 3200W Off Grid Solar Kit comes complete with all the essential cables, switches. Each kit has been designed for a quick and easy install and include all cables and connectors along with a 3000W IPower-Plus pure sine wave inverter as standard. (upgradeable for additional cost)

The solar power is harnessed with high efficient solar modules, with an impressive 25 year linear power warranty, this is the range to fit and forget.

Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel, this system can deliver approximately 266Ah on a 48V system per day during the summer months.

Monitoring of the system is made easy with the included communication module allowing you to monitor the solar controller and power inverter through the module as well as set parameters vie Apple & Android smartphones, tablets, MacBook's and other devices. Along with this is included an MT75 LCD Display so you can quickly see the inverter and solar controller stats without the need of a mobile device and APP.

Kit Performance - Summertime

• MPPT Controller: 48V System - 266Ah per day

PRODUCT CODE: KITPK3200348IPNB

SRG400 - 400 watt solar panel, on the 182 mm mono solar cell, takes unique half-cut cell technology, reduces interconnection losses, and brings higher efficiency.

Suitable for Multiple Scenarios – Ideal for 12V off-grid applications, including RVs, rooftops, cabins, yachts, homes, fences, greenhouse, and LED lights. High efficiency, pleasant design and an exceptional warranty.

Solar Panel Specifications

• Power Class: 400W
• Maximum Power Current: (Ipm): 12.78A
• Maximum Power Voltage: (Vpm): 31.3V
• Short Circuit Current (Isc): 13.42A
• Power Output Tolerance (Pmax): 0/+5
• Open Circuit Voltage (Voc): 36.6V
• Nominal Operating Cell Temp. (NOCT): -40 to +85°C
• Maximum System Voltage: 1000V DC
• Cells: 108 Half Cells (6x9x2)

• Frame Colour: Black
• Module Efficiency (%): 25.7
• Connector Type: MC4 or compatible connector
• Length (mm): 1770
• Width (mm): 1134
• Thickness (mm): 30
• Product Weight (Kg): 18.2

Guaranteed Performance

• 10 Year Manufacturers Warranty
• 25 Year Product Warranty

PRODUCT CODE: SRG400

The IT-NC G3 series is a new generation of high-current MPPT charge and discharge controller. It features load output capability and delivers superior MPPT tracking and conversion efficiency. The series is compatible with various lithium battery types and supports three-stage charging management to extend battery lifespan. Its exceptional low-power design significantly reduces static consumption, prolonging system standby time.

Comprehensive electronic protection and flexible communication options (WiFi, Bluetooth, 4G, etc.) further enhance system reliability and monitoring capabilities. It is widely used in RVs, boats, industrial monitoring, and small to medium-sized solar power systems

Features

• Supports 12V/24V/48V systems; Charge/Discharge current: 50A–100A
• All metal die-casting shell, IP43
• Supports two PV inputs (1) (2)
• Max. MPPT tracking efficiency: 99.9%; Max. Conversion efficiency: 98.5%
• Compatible with AGM, Gel, Flooded, LiFePO4 batteries, etc.
• Constant voltage output function: Enables direct load supply with sufficient PV energy
• Communication interface with electrical isolation
• CAN: Parallel operation of up to 6 devices (with or without batteries)
• BMS: Ensures reliable lithium battery charge/discharge management
• RS485: Optional Bluetooth, WiFi, or 4G modules
• Real-time data recording, event logging, and power statistics function
• EMC compliant (CLASS B)

(1) IP32 without terminal cover

(2) IT10420NC G3 supports two PV inputs

(3) Directly communicates with EPEVER batteries; Requires BMS-LINK module for others (refer to manual)

Specifications

• Nominal System Voltage: 12/24/48VDC or Auto
• Battery Input Voltage Range: 8V～62V
• Battery Type: AGM/Gel/Flooded/User
• Lithium Battery: LifePO4 / Li (NiCoMn) O2 / User
• Max Rated Charging Current: 100 amps
• Max Rated Charge Power: 1300W/12V - 2600W/24V - 5200W/48V
• Max Input Voltage: 200Vdc
• Max. conversion efficiency: 98.5%
• Full load efficiency: 97.6%
• Tracking efficiency: ≥99.5%
• Self Consumption: 98mA/12V;60mA/24V;46mA/48V
• Grounding: Common negative grounding
• Ambient temperature range: -25℃～+60℃ (Derating when temperature is above 40℃)
• Enclosure: IP43 (controller with terminal cover): IP32 (controller only)
• Terminal cable size: 35mm

Dimensions: 352 × 263× 158mm with terminal cover

Dimensions: 352 × 212× 149mm without terminal cover

Weight: 7.87kg

PRODUCT CODE: IT10420-NC-G3

IPower-Plus is a new generation of pure sine wave inverter compatible with the lithium battery system. This new inverter adopts surge current suppression technology to effectively prevent the surge current from damaging the lithium battery cells and BMS (Battery Management System). Also, adopting the voltage and current double closed-loop control algorithm brings the inverter a faster response and better resistance to the load impact. The inverter is built using high quality key components with high power density and long lifespan to provide a stable and reliable power guarantee.

The optional communication solutions allow users to monitor the real-time status or change the parameters wherever. The inverter can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV power supply, security monitoring system, emergency lighting system, field power system, household power system, etc.

With excellent EMC (Electro Magnetic Compatibility) characteristics, the inverter is also suitable for high power quality requirements.

Features:

• Completely electrically isolated design for input and output
• Full digital double closed-loop control
• Excellent EMC characteristic, widely applied to higher quality power systems
• Advanced SPWM technology and pure sine wave output
• Input surge current suppression technology, applying to the lithium battery systems
• Outstanding load resistance to impact, applying to the air conditioners, washing machines, refrigerators, etc.
• High power density and high-quality components to ensure the reliability
• Output power factor up to 1
• Low loss of zero loads and standby. Low THD (Total Harmonic Distortion). High conversion efficiency
• Extensive protections: input reverse polarity/under voltage/over voltage, output overload/short circuit/overheating
• Air cooling is controlled by temperature and load
• Rotatable LCD meter to simplify the system wiring
• Friendly LCD meter for easy monitoring and parameter configuration
• Remote control by the phone Apps and PC software
• Configurable output voltage and output frequency
• Charging mobile phones, DC fans, and other electrical equipment by the USB port
• Support a variety of options by connecting with the RS485 com.
• External switch contact design to allow remote control
• IEC62109, EN61000, RoHS approved

PRODUCT CODE: IP3000_42
