3600W - 48V Off Grid Solar Kit - Power Inverter

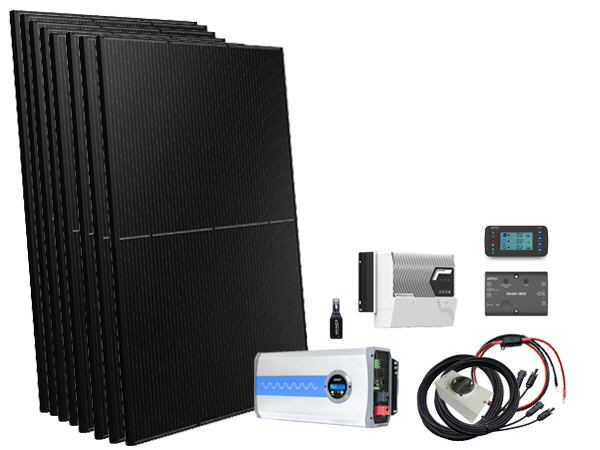

The 3600W Off Grid Solar Kit comes complete with all the essential cables, switches. Each kit has been designed for a quick and easy install and include all cables and connectors along with a 3000W IPower-Plus pure sine wave inverter as standard. (upgradeable for additional cost)

The solar power is harnessed with a high efficient, TOPCon (N-Type) Bifacial solar module, with an impressive 30 year linear power warranty this is the range to fit and forget. Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 300Ah on a 48V system per day during the summer months.

Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.

Kit Performance - Summertime

• MPPT Controller: 48V System - 300Ah per day

PRODUCT CODE: KITPK3600348IPNB

450W N-Type TOPCon Bifacial, Dual Glass, Black Frame Solar Module

N-Type technology offering a high-performance product and high-efficiency energy conversion.

KEY FEATURES:

• High module conversion efficiency, up to 22.8%
• N-Type Bifacial Module Black Frame,
• Anodised Aluminium Alloy
• Glass Thickness: 1.6 mm
• Maximum System Voltage: 1,500V
• Better low irradiance performance - Higher power output even under low irradiance environments like on cloudy or foggy days
• Excellent Appearance and Performance - Bifacial solar cell, symmetrical design, low risk of hidden micro-cracks
• High Reliability - 3-fold IEC new standard tests passed
• Double Sided power generation - Bifaciality is up to 80%, up to 30% more energy yield than conventional modules
• Extensive Application Scenes - More extensive application scenes, such as Building-integrated photovoltaics (BIPV), snow field, vertical installation, high humidity, strong wind and desert region
• Extended load tests - Module certified for maximum static test load on the front (5400 Pascal) and maximum static test load on the rear (2400 Pascal) IP68 Rating, 3 bypass diodes
• Standard 25 year product warranty; 30-year performance warranty

SPECIFICATIONS:

• Nominal Max. Power (Pmax/W): 450
• Open Circuit Voltage (Voc/V): 39.18
• Short Circuit Current (Isc/A): 14.68
• Operating Voltage (Vmp/V): 32.47
• Operating Current (Imp/A): 13.86
• Efficiency (%): 22
• Cell Type: N Type
• Module Size: 1800 × 1134 × 30mm
• Glass Thickness:1.6mm
• Module Weight: 21.7Kg
• Output Cable: 4mm² cable length 1200mm (can be customized)
• Connectors: MC4 Series
• Junction Box:  IP68 - 3 bypass diodes
• Frame:  Black Anodized aluminium alloy

PRODUCT CODE: SSD-108ND450

This series of controllers can effectively prolong the life-cycle of batteries, significantly improving the systems performance. The load, utility or generator auto-control relays make it ideal to use with a solar power system and backup generator. All-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection this effectively ensure a safe and reliable solar system. The isolated RS485 interface with standard MODBUS communication protocol and 5V power supply makes it easy for customers to expand the control parameters. Up to 8 controllers can be in linked in parallel for synchronised charging to meet future system expansions and monitoring requirements.

Features

• CE certification (LVD EN/IEC62109,EMC EN61000-6-1/3).
• High quality & low failure rate components of ST and Infineon to ensure the product’s life.
• Advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5%.
• Maximum DC/DC transfer efficiency is as high as 98.6%, full load efficiency is up to 98%.
• Advanced MPPT control algorithm will minimise the MPP loss rate and loss time.
• The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP.
• The wider range of MPP operating voltage.
• Auto control system to limit the charging power & current go over the rated value.
• Support 4 charging options: Sealed, Gel, Flooded and User.
• Battery temperature compensation function.
• Real-time energy recording and statistical function.
• Automatic over-temperature power reduction function.
• Hundred percent full load operation in working environment temperature range within charging & discharging
• Support up to 8 units in parallel to expand system
• Load relay control external load switch signal to realise diversified load work modes
• The first and the second disconnection of load control, contain two relay’s contact.
• Auto-control of utility and generator relay design
• Utility or generator auto-control relays make it easy to compose the hybrid power system
• The remote temperature and the voltage sensor design will collect accurate data of battery temperature and voltage
• Isolated RS485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol
• To monitor or set the parameters by using the phone Apps or PC software.

Specifications

• Nominal System Voltage: 12/24/36/48VDC or Auto
• Battery Input Voltage Range: 8V～68V
• Battery Type: Sealed(Default)/Gel/Flooded/User
• Max Rated Charging Current: 100 amps
• Max Rated Charge Power: 1250W/12V - 2500W/24V - 3750W/36V - 5000W/48V
• Max Input Voltage: 200Vdc
• Max. conversion efficiency: 98.6%
• Full load efficiency: 98%
• Tracking efficiency: ≥99.5%
• Self Consumption: 98mA/12V;60mA/24V;50mA/36V;46mA/48V
• Grounding: Common negative grounding
• Relay: Rated Value:5A/30VDC; Max. Value:0.5A/60VDC
• Ambient temperature range: -25℃～+60℃ (Derate above 45℃)
• Enclosure: IP20

Dimensions: 394×242×143mm

Weight: 7.4kg

PRODUCT CODE: TRACER10420AN

IPower-Plus is a new generation of pure sine wave inverter compatible with the lithium battery system. This new inverter adopts surge current suppression technology to effectively prevent the surge current from damaging the lithium battery cells and BMS (Battery Management System). Also, adopting the voltage and current double closed-loop control algorithm brings the inverter a faster response and better resistance to the load impact. The inverter is built using high quality key components with high power density and long lifespan to provide a stable and reliable power guarantee.

The optional communication solutions allow users to monitor the real-time status or change the parameters wherever. The inverter can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV power supply, security monitoring system, emergency lighting system, field power system, household power system, etc.

With excellent EMC (Electro Magnetic Compatibility) characteristics, the inverter is also suitable for high power quality requirements.

Features:

• Completely electrically isolated design for input and output
• Full digital double closed-loop control
• Excellent EMC characteristic, widely applied to higher quality power systems
• Advanced SPWM technology and pure sine wave output
• Input surge current suppression technology, applying to the lithium battery systems
• Outstanding load resistance to impact, applying to the air conditioners, washing machines, refrigerators, etc.
• High power density and high-quality components to ensure the reliability
• Output power factor up to 1
• Low loss of zero loads and standby. Low THD (Total Harmonic Distortion). High conversion efficiency
• Extensive protections: input reverse polarity/under voltage/over voltage, output overload/short circuit/overheating
• Air cooling is controlled by temperature and load
• Rotatable LCD meter to simplify the system wiring
• Friendly LCD meter for easy monitoring and parameter configuration
• Remote control by the phone Apps and PC software
• Configurable output voltage and output frequency
• Charging mobile phones, DC fans, and other electrical equipment by the USB port
• Support a variety of options by connecting with the RS485 com.
• External switch contact design to allow remote control
• IEC62109, EN61000, RoHS approved

PRODUCT CODE: IP3000_42
