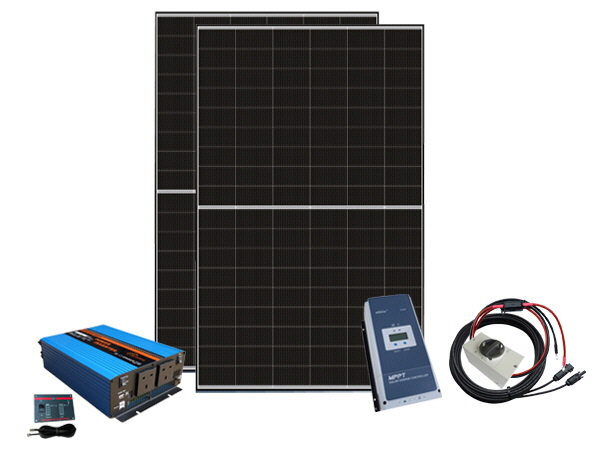

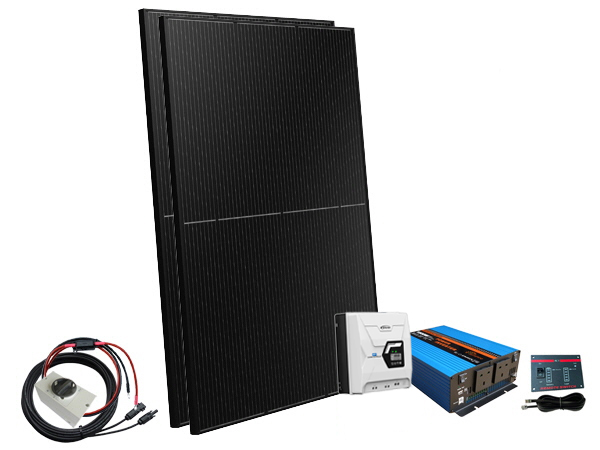

900W - 12V Off Grid Solar Kit - Power Inverter

The 900W Off Grid Solar Kit comes complete with all the essential cables, switches plus a 1500W 12V pure sine wave power inverter as standard, this can be upgraded for an additional cost.

The solar power is harnessed with a high efficient, TOPCon (N-Type) Bifacial solar module, with an impressive 30 year linear power warranty this is the range to fit and forget. Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 300Ah on a 12V system per day during the summer months.

Monitoring of the system can be made easy with the optional remote meter or via Apple & Android smartphones, tablets, MacBook's and other devices, using the optional Bluetooth Adapter.

Kit Performance - Summertime

MPPT Controller: 12V System - 300Ah per day

Please Note: This kit requires battery/batteries (not included), if you need help choosing a suitable battery system please contact our Technical Support who will be more than happy to assist and answer any questions you have.

PRODUCT CODE: KITPK9001512NB

450W N-Type TOPCon Bifacial, Dual Glass, Black Frame Solar Module

N-Type technology offering a high-performance product and high-efficiency energy conversion.

KEY FEATURES:

• High module conversion efficiency, up to 22.8%
• N-Type Bifacial Module Black Frame,
• Anodised Aluminium Alloy
• Glass Thickness: 1.6 mm
• Maximum System Voltage: 1,500V
• Better low irradiance performance - Higher power output even under low irradiance environments like on cloudy or foggy days
• Excellent Appearance and Performance - Bifacial solar cell, symmetrical design, low risk of hidden micro-cracks
• High Reliability - 3-fold IEC new standard tests passed
• Double Sided power generation - Bifaciality is up to 80%, up to 30% more energy yield than conventional modules
• Extensive Application Scenes - More extensive application scenes, such as Building-integrated photovoltaics (BIPV), snow field, vertical installation, high humidity, strong wind and desert region
• Extended load tests - Module certified for maximum static test load on the front (5400 Pascal) and maximum static test load on the rear (2400 Pascal) IP68 Rating, 3 bypass diodes
• Standard 25 year product warranty; 30-year performance warranty

SPECIFICATIONS:

• Nominal Max. Power (Pmax/W): 450
• Open Circuit Voltage (Voc/V): 39.18
• Short Circuit Current (Isc/A): 14.68
• Operating Voltage (Vmp/V): 32.47
• Operating Current (Imp/A): 13.86
• Efficiency (%): 22
• Cell Type: N Type
• Module Size: 1800 × 1134 × 30mm
• Glass Thickness:1.6mm
• Module Weight: 21.7Kg
• Output Cable: 4mm² cable length 1200mm (can be customized)
• Connectors: MC4 Series
• Junction Box:  IP68 - 3 bypass diodes
• Frame:  Black Anodized aluminium alloy

PRODUCT CODE: SSD-108ND450

This series of controllers can effectively prolong the life-cycle of batteries, significantly improving the systems performance. The load, utility or generator auto-control relays make it ideal to use with a solar power system and backup generator. All-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection this effectively ensure a safe and reliable solar system. The isolated RS485 interface with standard MODBUS communication protocol and 5V power supply makes it easy for customers to expand the control parameters. Up to 8 controllers can be in linked in parallel for synchronised charging to meet future system expansions and monitoring requirements.

Features

• CE certification (LVD EN/IEC62109,EMC EN61000-6-1/3).
• High quality & low failure rate components of ST and Infineon to ensure the product’s life.
• Advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5%.
• Maximum DC/DC transfer efficiency is as high as 98.6%, full load efficiency is up to 98%.
• Advanced MPPT control algorithm will minimise the MPP loss rate and loss time.
• The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP.
• The wider range of MPP operating voltage.
• Auto control system to limit the charging power & current go over the rated value.
• Support 4 charging options: Sealed, Gel, Flooded and User.
• Battery temperature compensation function.
• Real-time energy recording and statistical function.
• Automatic over-temperature power reduction function.
• Hundred percent full load operation in working environment temperature range within charging & discharging.
• Support up to 8 units in parallel to expand system.
• Load relay control external load switch signal to realise diversified load work modes.
• The first and the second disconnection of load control, contain two relay’s contact.
• Auto-control of utility and generator relay design.
• Utility or generator auto-control relays make it easy to compose the hybrid power system.
• The remote temperature and the voltage sensor design will collect accurate data of battery temperature and voltage.
• Isolated RS485 with 5VDC/200mA to protect output for no power devices with MODBUS protocol.
• To monitor or set the parameters by using the phone Apps or PC software.

Specifications

• Nominal System Voltage: 12/24/36/48VDC or Auto
• Battery Input Voltage Range: 8V～68V
• Battery Type: Sealed(Default)/Gel/Flooded/User
• Max Rated Charging Current: 60 amps
• Max Rated Charge Power: 750W/12V - 1500W/24V - 2250W/36V - 3000W/48V
• Max Input Voltage: 150Vdc
• Max. conversion efficiency: 98.6%
• Full load efficiency: 98%
• Tracking efficiency: ≥99.5%
• Self Consumption: 98mA/12V;60mA/24V;50mA/36V;46mA/48V
• Grounding: Common negative grounding
• Relay: Rated Value:5A/30VDC; Max. Value:0.5A/60VDC
• Ambient temperature range: -25℃～+60℃ (Derate above 45℃)
• Enclosure: IP20

Dimensions: 340 × 236 ×119 mm

Weight: 4.5kg

PRODUCT CODE: TRACER6415AN

Sunshine inverters are a very high grade and this product is supplied with heavy duty leads fitted with terminal rings for easy connectivity to your battery.

Numerous uses for off grid installations large and small, whether it be in the home, outbuildings, caravan, motorhome, car, truck or boat the Sunshine range of inverters give you a 230V power supply wherever you need it.

Sunshine power inverters have advantages of being compact, light weight, & low noise, once connected to a 12V battery bank, you get 230V AC directly from the power inverters universal output socket giving you a stable power supply for running your electrical appliances.

FEATURES

• Soft Start
• USB Port
• RCD Compatibility - Switchable
• Dual AC UK Outlets
• Battery Cables - 700mm Long
• Over-temperature protection
• Low battery voltage alarm
• Low battery voltage shutdown
• High battery voltage shutdown
• Overload protection, short circuit protection, polarity reverse connection protection
• Remote On/Off Switch

Specifications

• 1500W pure sine wave power inverter
• Output waveform: pure sine wave inverter
• Continuous power: 1500 Watt
• Surge power: 3000 Watt
• Input voltage: 10-15V DC
• Output volt: 230
• Frequency: 50Hz
• Efficiency: >85%
• Standard Cables: 4 x 700mm - 10mm²
• Dimension (L*W*H): 330*220*90mm
• Weight: 4.1KG

Certification: CE-EMC/LCD RoHS E-Mark

PRODUCT CODE: VP1500
