900W - 24V Off Grid Solar Kit - Power Inverter

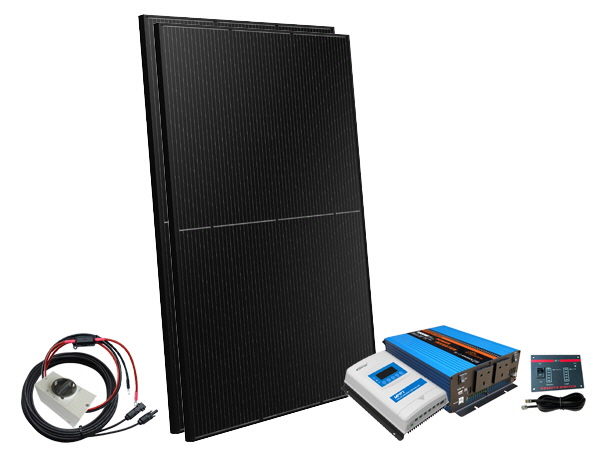

The 900W Off Grid Solar Kit comes complete with all the essential cables, switches plus a 1500W 24V pure sine wave power inverter as standard, this can be upgraded for an additional cost.

The solar power is harnessed with a high efficient, TOPCon (N-Type) Bifacial solar module with an impressive 30 year linear power warranty this is the range to fit and forget. Using the power of the sun and a state of art MPPT controller that intelligently regulates the working voltage of the solar panel this system can deliver approximately 150Ah on a 24V system per day during the summer months.

Monitoring of the system can be made easy with an Apple Android smartphones, tablets, MacBook's and other devices, using the solar controllers built in Bluetooth function.

Kit Performance - Summertime

MPPT Controller: 24V System - 150Ah per day

Please Note: This kit requires battery/batteries (not included), if you need help choosing a suitable battery system please contact our Technical Support who will be more than happy to assist and answer any questions you have.

PRODUCT CODE: KITPK9001524NB

450W N-Type TOPCon Bifacial, Dual Glass, Black Frame Solar Module

N-Type technology offering a high-performance product and high-efficiency energy conversion.

KEY FEATURES:

• High module conversion efficiency, up to 22.8%
• N-Type Bifacial Module Black Frame,
• Anodised Aluminium Alloy
• Glass Thickness: 1.6 mm
• Maximum System Voltage: 1,500V
• Better low irradiance performance - Higher power output even under low irradiance environments like on cloudy or foggy days
• Excellent Appearance and Performance - Bifacial solar cell, symmetrical design, low risk of hidden micro-cracks
• High Reliability - 3-fold IEC new standard tests passed
• Double Sided power generation - Bifaciality is up to 80%, up to 30% more energy yield than conventional modules
• Extensive Application Scenes - More extensive application scenes, such as Building-integrated photovoltaics (BIPV), snow field, vertical installation, high humidity, strong wind and desert region
• Extended load tests - Module certified for maximum static test load on the front (5400 Pascal) and maximum static test load on the rear (2400 Pascal) IP68 Rating, 3 bypass diodes
• Standard 25 year product warranty; 30-year performance warranty

SPECIFICATIONS:

• Nominal Max. Power (Pmax/W): 450
• Open Circuit Voltage (Voc/V): 39.18
• Short Circuit Current (Isc/A): 14.68
• Operating Voltage (Vmp/V): 32.47
• Operating Current (Imp/A): 13.86
• Efficiency (%): 22
• Cell Type: N Type
• Module Size: 1800 × 1134 × 30mm
• Glass Thickness:1.6mm
• Module Weight: 21.7Kg
• Output Cable: 4mm² cable length 1200mm (can be customized)
• Connectors: MC4 Series
• Junction Box:  IP68 - 3 bypass diodes
• Frame:  Black Anodized aluminium alloy

PRODUCT CODE: SSD-108ND450

XTRA-N G3 BLE series controllers are based on a new design concept, featuring a Bluetooth module which allows you to read and write parameters via Apple and Android Smartphones. The controllers adopt the advanced MPPT control algorithm, improving the maximum power point (MPP) tracking and acting speed. By minimizing the MPP loss rate and time, the controllers can track the MPP quickly to obtain the maximum energy under any conditions.

Independent voltage regulation, namely, the battery terminal of the controller can be connected to loads directly when there is no battery, this is a new added function. The Xtra Series are lithium batteries friendly, avoiding the instability output voltage caused by the internal protection of the lithium batteries.

Low self-consumption design significantly reduces the static power consumption and extends system standby time.

The Xtra Series perform well under the high temperature ensuring system stability. IP33 Ingress protection and isolated RS485 com port design improves the controller’s reliability to meet different application requirements. XTRA-N G3 BLE series adopts a three-stage charging mode, which effectively prolongs the battery's lifespan and improves performance. Comprehensive electronic protections, such as overcharge, over-discharge, PV & battery reverse polarity, etc., helps to protect the solar system components. This controller are widely used for RVs, Motorhomes, Caravans, Boats household systems, etc.

Features：

• High quality and low failure rate components of ST or IR to ensure the service life
• Advanced MPPT technology & ultra-fast tracking speed, tracking efficiency is up to 99.5%
• Maximum DC/DC transfer efficiency is as high as 98.5%; full load efficiency is up to 97.2%
• Advanced MPPT control algorithm to minimize the lost rate and lost time
• Accurate recognizing and tracking of multi-peaks maximum power point
• Wider MPP(maximum power point) running voltage to optimize PV utilization
• Support multi battery types including lithium batteries
• Equipped with a stable self-activation function for the lithium battery
• Set the battery voltage parameters on the LCD
• Battery temperature compensation
• Limit the charging power & charging current to no higher than the rated value
• Real-time energy statistics function
• Charging power reduction automatically for over-temperature
• Built-in Bluetooth to adjust settings through EPEVER APP
• RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
• Setting parameters via the PC software, APP, or remote meter
• Constant voltage output function
• Comprehensive electronic protections
• Multiple load work modes
• Dustproof and waterproof design with IP33 enclosure
• Low self-consumption, lower than 10mA
• Operation at full load without charging power being reduced in the working temperature range

PRODUCT CODE: XTRA3210N-G3-BLE

Sunshine inverters are a very high grade and this product is supplied with heavy duty leads fitted with terminal rings for easy connectivity to your battery.

Numerous uses for off grid installations large and small, whether it be in the home, outbuildings, caravan, motorhome, car, truck or boat the Sunshine range of inverters give you a 230V power supply wherever you need it.

Sunshine power inverters have advantages of being compact, light weight, & low noise, once connected to a 24V battery bank, you get 230V AC directly from the power inverters universal output sockets giving you a stable power supply for running your electrical appliances.

FEATURES

• Soft Start
• USB Port
• Dual AC Universal Outlets
• Over-temperature protection
• Low battery voltage alarm
• Low battery voltage shutdown
• High battery voltage shutdown
• Overload protection, short circuit protection, polarity reverse connection protection
• Remote On/Off Switch

Specifications

• 1500W pure sine wave power inverter
• Output waveform: pure sine wave inverter
• Continuous power: 1500 Watt
• Surge power: 3000 Watt
• Input voltage: 20-30V DC
• Output volt: 230
• Frequency: 50Hz
• Efficiency: >85%
• Cables Supplied: 2 x 700mm - 6mm²
• Dimension (L*W*H): 330*220*90mm
• Weight: 4.1KG

Certification CE-EMC/LCD RoHS E-Mark

PRODUCT CODE: VP150024
