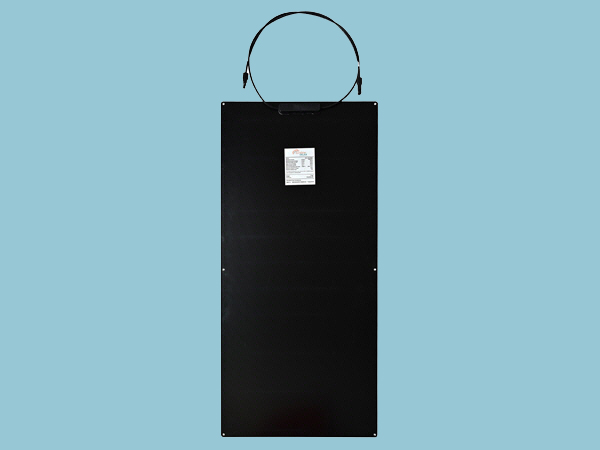

120W Semi Flexi - Sunshine Solar Panel with Rear Junction Box
The Sunshine Solar’s SFGLED series is a semi-rigid lightweight solar panel it has flame-retardant ETFE coating on both the front and back sides which can also protect the solar cells from external impact. Its special grain design can reduce the reflection of light to absorb more sunlight. Having a full ETFE coating makes it more suitable for extreme application, especially the marine environment.
The Sunshine Solar Semi Flexi Panels are encapsulated in an ETFE coating, which has high light transmission, excellent flexibility, and are more heat-resistant than PET films used in other solar panels.
The panel has a non-stick surface, that make the solar panel, dirt-resistant and “self-cleaning” which helps to achieve optimal performance.
With a 120W Semi Flexi - Sunshine Solar Panel you could expect to generate around 40 amps per day when used in conjunction with an MPPT Solar Controller during the summer months.
Solar Panel Specifications
- Maximum Power (Pmax): 120W
- Maximum Power Current (Ipm): 5.92A
- Maximum Power Voltage (Vpm): 20.3V
- Short Circuit Current (Isc): .6.27A
- Open Circuit Voltage (Voc): 24V
- Nominal Operating Cell Temp. (NOCT): -45 to 75°C
- Maximum System Voltage: DC200V
- Size: 1195 x 540 x 4mm
Features
- Fixing eyelets
- ETFE rough scratch resistant surface which can be walked on in deck shoes.
- Highly efficient monocrystalline cells
- Can be conveniently placed on slightly curved solid surfaces
- Can be easily bonded using Fixing Adhesive (no need for drilling)
- Rear Junction Box
- 4mm Single Core Cable fitted with type MC4 Connectors
- One Year Manufacturers Warranty - 10 Year Service Life
PRODUCT CODE: SFGLED120RB
