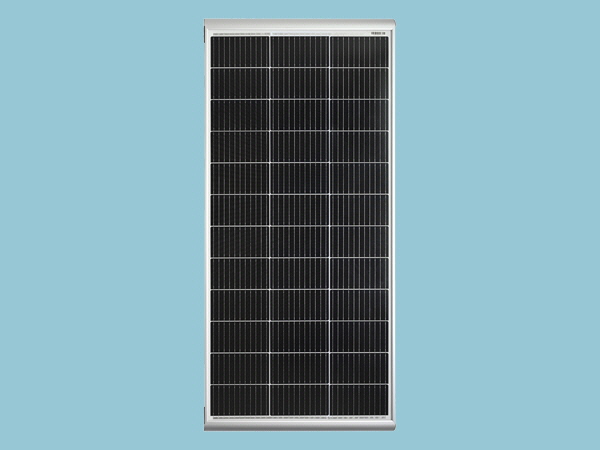

135W RV Sunshine Solar Panel - Integrated Mounts
This RV Solar Panel from Sunshine Solar is a slimline 135W solar panel with integrated roof mounts, seamlessly fitted for an aesthetically pleasing look and an aerodynamic performance. Best of all having the mounts already pre-fitted means you do not have to source and fit the mounts yourself, saving money and time.
With the SRG135 solar panel you could expect to generate around 32 amps per day when used in conjunction with a PWM solar charge controller and around 45 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.
Specifications
- Product Code. SRG135
- Max Power. 135W ± 3%
- Max Power Voltage. 20.9V
- Max Power Current. 6.46A
- Open Circuit Voltage. 24.5V
- Short Circuit Current. 6.78A
- Normal Operating Cell Temp. -45 to 80°C
- Max System Voltage. DC1000V
- Dimensions. 1265 x 590 x 55mm
- Weight. 8.8kg
Features
- Integrated Streamline Aluminium Roof Mounts
- 5m of twin-core insulated cable
- High Performance Monocrystalline Cells
- Factory fitted aluminium frame
- Multiple pieces can be connected to acquire higher power
- Suitable for charging all types of 12 volt batteries
- Fitted with bypass diodes to minimise the effect of shading
- Completely weatherproof
Guaranteed Performance
- 10 Years Warranty
- 25 Years Service Life
Suitable Solar Charge Controllers
- PWM Solar Controller 10A - 12/24V
- Dual Battery Controller 10A - 12/24V
- MPPT Solar Controller 10A - 12/24V (10% - 30% more power generation)
- Dual MPPT Solar Controller 10A - 12/24V (10% - 30% more power generation)
Please Note: If you are connecting multiple panels together you may need a bigger solar controller if you are unsure which you require or have any other questions please call 01508 488188 then Option 4 for Technical.
PRODUCT CODE: SRG135
