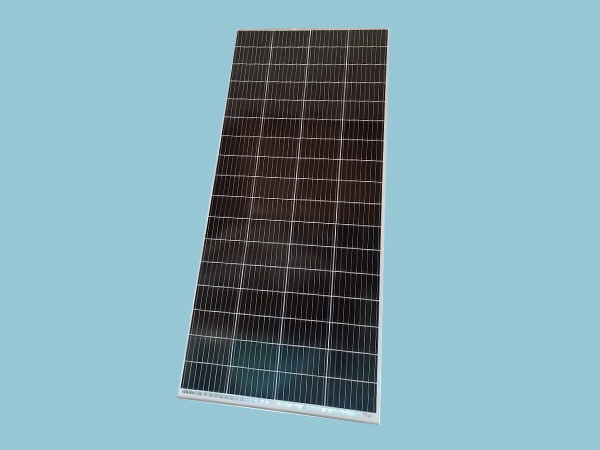

Sunshine Solar Panels 190W 12V Mono

With a Sunshine 190W solar panel you could expect to generate around 63 amps per day with an MPPT solar controller during the summer months. Multiple panels can be connected to acquire higher power if needed.

Specifications

• High Efficiency Monocrystalline Cells
• Maximum Power (Pmax): 190W
• Maximum Power Current (Ipm): 9.80A
• Maximum Power Voltage (Vpm): 19.4V
• Short Circuit Current (Isc): 10.28A
• Open Circuit Voltage (Voc): 22.7V
• Nominal Operating Cell Temp. (NOCT): -45 to 80°C
• Maximum System Voltage: DC1000V
• Size: 1450mm x 680mm x 35mm
• Weight: 9.0kg

Features

• 900mm of 4mm single-core cable fitted with MC Type 4 Connectors
• High Performance Monocrystalline Cells
• Factory fitted aluminium frame with pre-drilled mounting holes
• Multiple pieces can be connected to acquire higher power
• Suitable for charging all types of 12 volt batteries
• Fitted with bypass diodes to minimise the effect of shading
• Completely weatherproof

Guaranteed Performance

• 5 Years Manufacturers Warranty
• 10 Years Warranty 90% Power Output
• 20 Years Warranty 80% Power Output

Suitable Solar Charge Controllers

• PWM Solar Controller 20A - 12/24V
• PWM Dual Battery Controller 20A - 12/24V
• MPPT Solar Controller 20A - 12V/24V (10% - 30% more power generation)
• MPPT Dual Solar Controller 20A - 12V/24V (10% - 30% more power generation)

Please Note: If you are connecting multiple panels together you may need a bigger solar controller if you are unsure which you require or have any other questions please call 01508 488188 then Option 4 for Technical.

For the best performance we would recommend 4mm single core cable is used the same as the existing cable already attached to the solar panel junction box. The most efficient method of extending the existing cable is by using 4mm single-core cable fitted with a pair of compatible MC Type 4 Solar Connectors.
