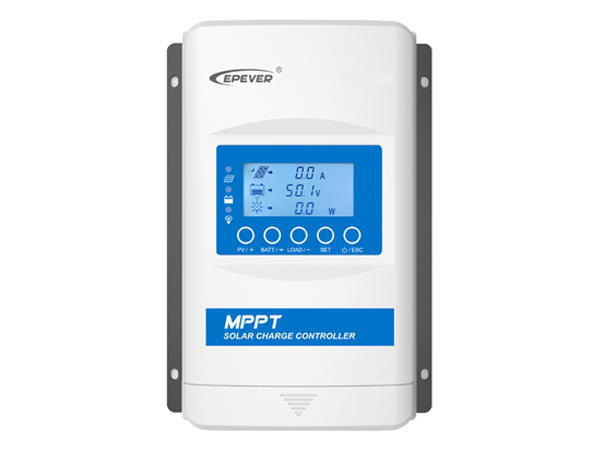

40A MPPT Controller XTRA Series Built-in Bluetooth

XTRA-N G3 BLE series controllers are based on a new design concept, featuring a Bluetooth module which allows you to read and write parameters via Apple and Android Smartphones. The controllers adopt the advanced MPPT control algorithm, improving the maximum power point (MPP) tracking and acting speed. By minimizing the MPP loss rate and time, the controllers can track the MPP quickly to obtain the maximum energy under any conditions.

Independent voltage regulation, namely, the battery terminal of the controller can be connected to loads directly when there is no battery, this is a new added function. The Xtra Series are lithium batteries friendly, avoiding the instability output voltage caused by the internal protection of the lithium batteries.

Low self-consumption design significantly reduces the static power consumption and extends system standby time.

The Xtra Series perform well under the high temperature ensuring system stability. IP33 Ingress protection and isolated RS485 com port design improves the controller’s reliability to meet different application requirements. XTRA-N G3 BLE series adopts a three-stage charging mode, which effectively prolongs the battery's lifespan and improves performance. Comprehensive electronic protections, such as overcharge, over-discharge, PV & battery reverse polarity, etc., helps to protect the solar system components. This controller are widely used for RVs, Motorhomes, Caravans, Boats household systems, etc.

Features：

• High quality and low failure rate components of ST or IR to ensure the service life
• Advanced MPPT technology & ultra-fast tracking speed, tracking efficiency is up to 99.5%
• Maximum DC/DC transfer efficiency is as high as 98.5%; full load efficiency is up to 97.2%
• Advanced MPPT control algorithm to minimize the lost rate and lost time
• Accurate recognizing and tracking of multi-peaks maximum power point
• Wider MPP(maximum power point) running voltage to optimize PV utilization
• Support multi battery types including lithium batteries
• Equipped with a stable self-activation function for the lithium battery
• Set the battery voltage parameters on the LCD
• Battery temperature compensation
• Limit the charging power & charging current to no higher than the rated value
• Real-time energy statistics function
• Charging power reduction automatically for over-temperature
• Built-in Bluetooth to adjust settings through EPEVER APP
• RS485 communication interface with optional 4G or Wi-Fi modules for remote monitoring
• Setting parameters via the PC software, APP, or remote meter
• Constant voltage output function
• Comprehensive electronic protections
• Multiple load work modes
• Dustproof and waterproof design with IP33 enclosure
• Low self-consumption, lower than 10mA
• Operation at full load without charging power being reduced in the working temperature range

PRODUCT CODE: XTRA4210N-G3-BLE
